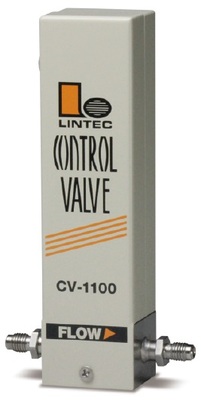

CV-1000 Control Valve for Liquid with Solenoid Actuator.
CV-1000 Series
Control valve for liquids with solenoid actuator; proportional solenoid valve with adjustable valve opening with 0 to 15 V voltage input.
Feature
- Proportional Solenoid Valves
- Metal seal
- Clean
Examples of Use
Flow control valve for liquid
Combined with LM-3000L, it can be used as a mass flow controller for liquids.
Specification Table
| Model | CV-1204 | |
|---|---|---|
| Flow rate(C2H5OH) | 0.1 ～ 10g/min | 10 ～ 20g/min |
| Flow rate(H2O) | 0.1 ～ 0.5g/min | 5 ～ 10g/min |
| Flow rate control range | 5 ～ 100% F.S. | |
| Valve operation mode | Normally closed | |
| Accuracy | ±1.0% F.S. | |
| Operating differential pressure | 50 ～ 300kPa | 100 ～ 300kPa |
| Temperature | 0 ～ 50℃ | |
| Seal materials | Au | |
*When used with LM-3000L
